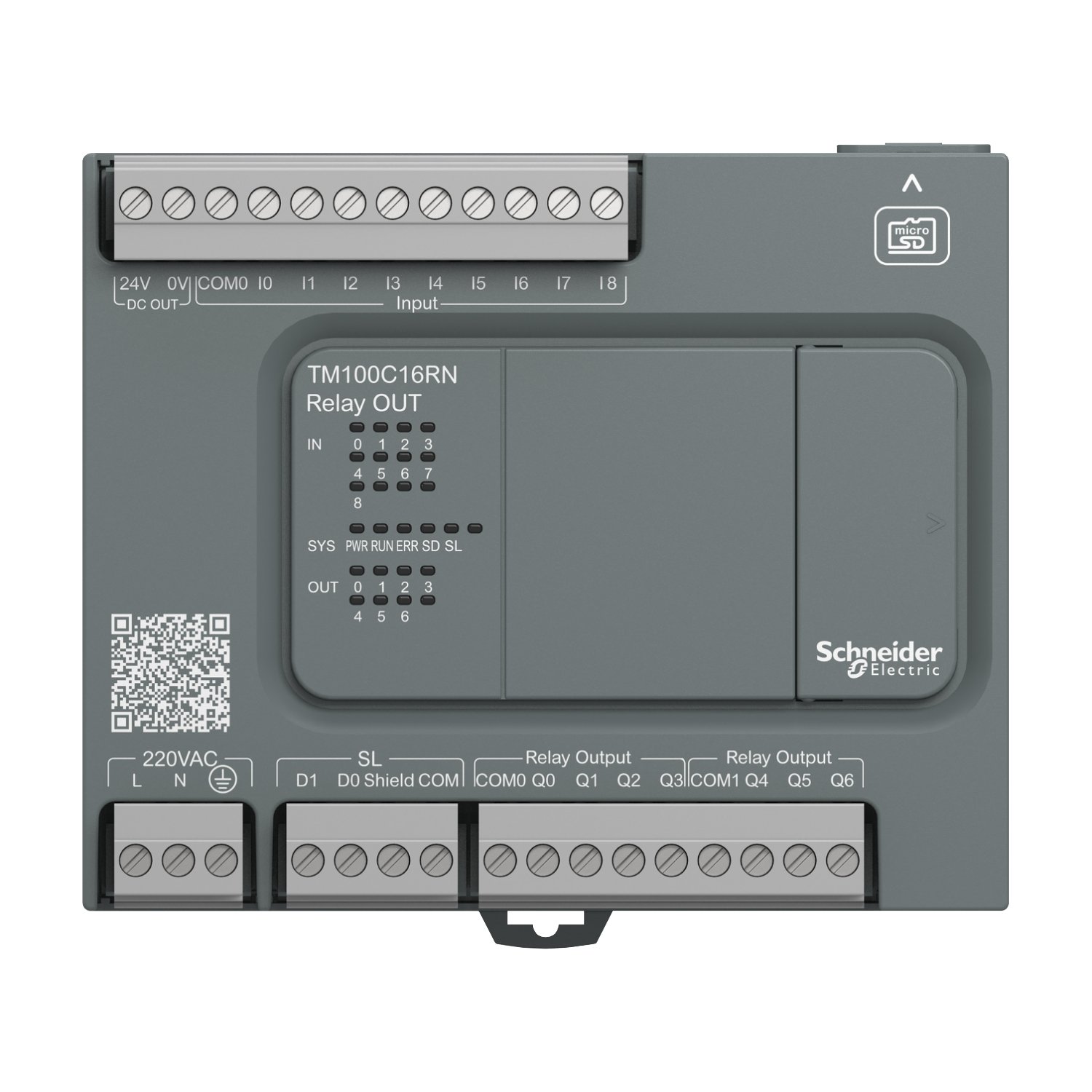

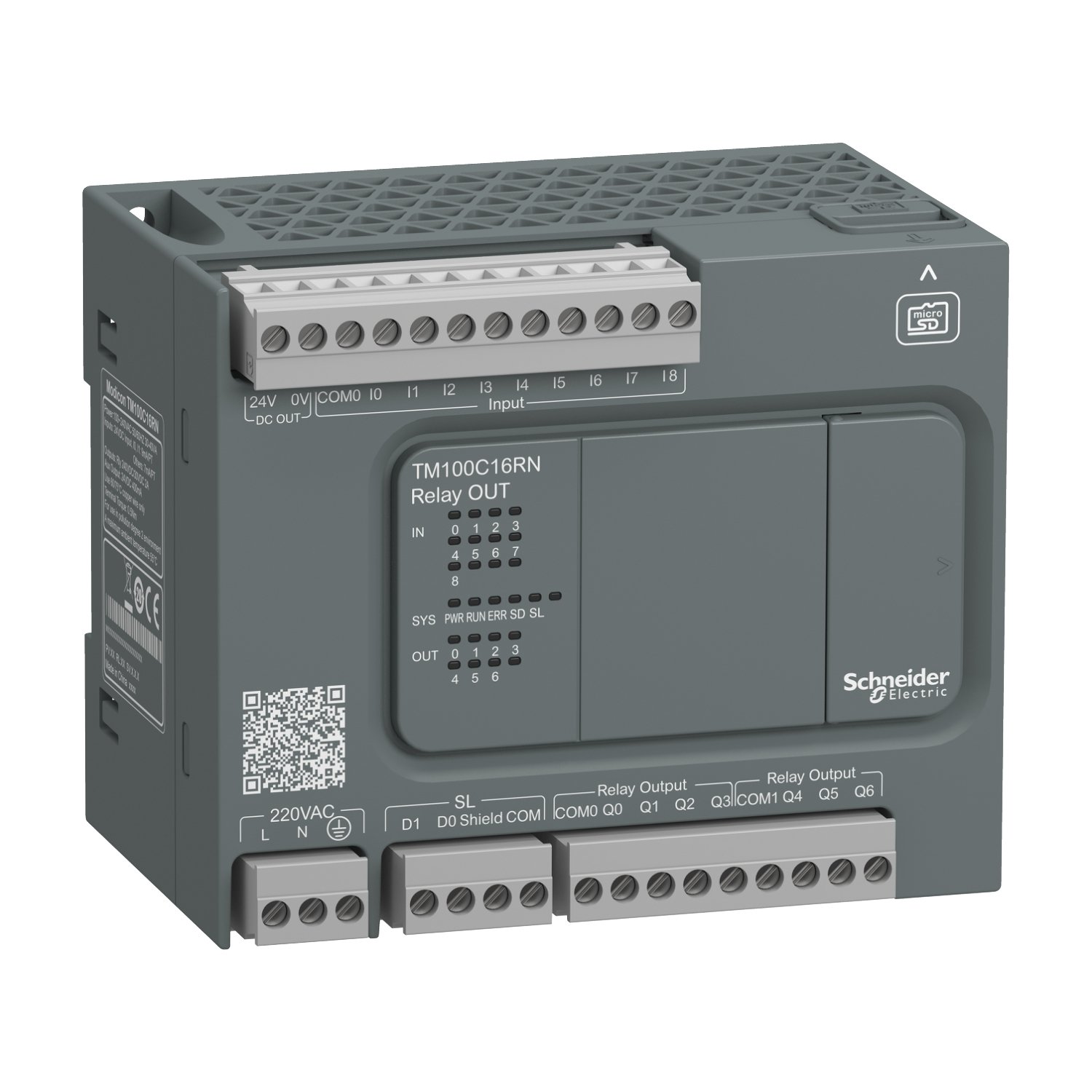

Controller M100 - 9I/7O relay - 220VAC
TM100C16RN
This product is part of the Easy modicon M100 range, an offer of logic controllers for simple machines up to 40 I/O. This logic controller provides 4 fast inputs, 2 high speed inputs, 3 regular inputs and 7 normally opened relay outputs. It is an Easy Modicon logic controller with an input voltage of 24V DC, an output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 and RS485 interface and non isolated serial link 2 and RS232/RS485 interface. It is a controller with an internal flash of 512KB and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.295kg. Designed for automation of small finishing, production, assembly or packaging machines. This product is certified by CE. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Cost-effective and easy solution to sequential control needs for your simple machines up to 40 I/O.
Main Documents
Description
This product is part of the Easy modicon M100 range, an offer of logic controllers for simple machines up to 40 I/O. This logic controller provides 4 fast inputs, 2 high speed inputs, 3 regular inputs and 7 normally opened relay outputs. It is an Easy Modicon logic controller with an input voltage of 24V DC, an output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 and RS485 interface and non isolated serial link 2 and RS232/RS485 interface. It is a controller with an internal flash of 512KB and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.295kg. Designed for automation of small finishing, production, assembly or packaging machines. This product is certified by CE. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Cost-effective and easy solution to sequential control needs for your simple machines up to 40 I/O.
Specifications
Main
| Range of product |
Easy Modicon M100 |
| Product or component type |
Logic controller |
| [Us] rated supply voltage |
100...240 V AC |
| Discrete I/O number |
16 |
| Discrete input number |
I2...I5: 4 fast input I6...I8: 3 regular input I0...I1: 2 high speed input |
| Discrete output number |
7 relay |
| Discrete input voltage |
24 V |
| Discrete input voltage type |
DC |
| Discrete input current |
7 mA for regular input 7 mA for fast input 9 mA for high speed input |
| Discrete output voltage |
24 V DC 220 V AC |
| Discrete output current |
2 A |
| Discrete output type |
Relay normally open |
| Power consumption in VA |
30…40 VA at 100...240 V AC (with max I/O) |
Range of product
Easy Modicon M100
Product or component type
Logic controller
[Us] rated supply voltage
100...240 V AC
Discrete I/O number
16
Discrete input number
I2...I5: 4 fast input
I6...I8: 3 regular input
I0...I1: 2 high speed input
I6...I8: 3 regular input
I0...I1: 2 high speed input
Discrete output number
7 relay
Discrete input voltage
24 V
Discrete input voltage type
DC
Discrete input current
7 mA for regular input
7 mA for fast input
9 mA for high speed input
7 mA for fast input
9 mA for high speed input
Discrete output voltage
24 V DC
220 V AC
220 V AC
Discrete output current
2 A
Discrete output type
Relay normally open
Power consumption in VA
30…40 VA at 100...240 V AC (with max I/O)
Complementary
| Supply voltage limits |
85…264 V |
| Voltage state 1 guaranteed |
>= 15 V for input |
| Voltage state 0 guaranteed |
<= 5 V for input |
| Network frequency |
50/60 Hz |
| Inrush current |
50 A |
| Input impedance |
3.3 kOhm for regular input 3.3 kOhm for fast input 2.81 kOhm for high speed input |
| Response time |
10 ms turn-on Q0...Q6 terminal(s) for relay output 10 ms turn-off Q0...Q6 terminal(s) for relay output 35 µs turn-on I2...I5 terminal(s) for fast input 100 µs turn-off I2...I5 terminal(s) for fast input 5 µs turn-on I0...I1 terminal(s) for high speed input 5 µs turn-off I0...I1 terminal(s) for high speed input 35 µs turn-on I6...I8 terminal(s) for regular input 100 µs turn-off I6...I8 terminal(s) for regular input |
| Configurable filtering time |
0 ms for input 3 ms for input 12 ms for input |
| Output voltage limits |
30 V DC 250 V AC |
| Maximum current per output common |
4 A at COM 0 4 A at COM 1 |
| Electrical durability |
100000 cycles AC-12 240 V 480 VA resistive 100000 cycles DC-12 24 V 48 W resistive |
| Switching frequency |
0.1 Hz with maximum load 5 Hz without maximum load |
| Mechanical durability |
20000000 cycles for relay output |
| Minimum load |
10 mA at 5 V DC for relay output |
| Memory capacity |
1024 kB internal flash with 10000 instructions for backup of programs |
| Data storage equipment |
32 GB micro SD card (optional) |
| Execution time for 1 KInstruction |
0.3 ms for event and periodic task |
| Execution time per instruction |
0.2 µs Boolean |
| Exct time for event task |
60 µs response time |
| Regulation loop |
Adjustable PID regulator up to 14 simultaneous loops |
| Control signal type |
Quadrature (x1 x2 x4) at 60 kHz for fast input (HSC mode) Pulse/direction at 60 kHz for fast input (HSC mode) Single phase at 60 kHz for fast input (HSC mode) CW/CCW at 60 kHz for fast input (HSC mode) |
| Counting input number |
2 fast input (HSC mode) at 60 kHz 32 bits |
| Integrated connection type |
USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface |
| Transmission rate |
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB |
| Communication port protocol |
USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local signalling |
1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (green) for SL1 1 LED per channel (green) for I/O state |
| Electrical connection |
removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block 4 terminal(s) for connecting the serial link1 Mini B USB 2.0 connectorfor a programming terminal removable screw terminal block 3 terminal(s) for connecting the 100-240 V AC power supply |
| Maximum cable distance between devices |
Shielded cable: <10 m for fast input Shielded cable: <10 m for high speed input Unshielded cable: <150 m for output Unshielded cable: <50 m for regular input |
| Insulation |
Between input and internal logic at 560 V AC Between fast input and internal logic at 560 V AC Between input groups at 560 V AC Non-insulated between inputs Between output and internal logic at 1780 V AC Between output groups at 1780 V AC Between supply and internal logic at 1780 V AC |
| Sensor power supply |
24 V DC |
| Mounting support |
Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height |
90 mm |
| Depth |
70 mm |
| Width |
110 mm |
| Product weight |
0.31 kg |
Supply voltage limits
85…264 V
Voltage state 1 guaranteed
>= 15 V for input
Voltage state 0 guaranteed
<= 5 V for input
Network frequency
50/60 Hz
Inrush current
50 A
Input impedance
3.3 kOhm for regular input
3.3 kOhm for fast input
2.81 kOhm for high speed input
3.3 kOhm for fast input
2.81 kOhm for high speed input
Response time
10 ms turn-on
Q0...Q6 terminal(s) for relay output
10 ms turn-off
Q0...Q6 terminal(s) for relay output
35 µs turn-on
I2...I5 terminal(s) for fast input
100 µs turn-off
I2...I5 terminal(s) for fast input
5 µs turn-on
I0...I1 terminal(s) for high speed input
5 µs turn-off
I0...I1 terminal(s) for high speed input
35 µs turn-on
I6...I8 terminal(s) for regular input
100 µs turn-off
I6...I8 terminal(s) for regular input
Q0...Q6 terminal(s) for relay output
10 ms turn-off
Q0...Q6 terminal(s) for relay output
35 µs turn-on
I2...I5 terminal(s) for fast input
100 µs turn-off
I2...I5 terminal(s) for fast input
5 µs turn-on
I0...I1 terminal(s) for high speed input
5 µs turn-off
I0...I1 terminal(s) for high speed input
35 µs turn-on
I6...I8 terminal(s) for regular input
100 µs turn-off
I6...I8 terminal(s) for regular input
Configurable filtering time
0 ms for input
3 ms for input
12 ms for input
3 ms for input
12 ms for input
Output voltage limits
30 V DC
250 V AC
250 V AC
Maximum current per output common
4 A at COM 0
4 A at COM 1
4 A at COM 1
Electrical durability
100000 cycles AC-12
240 V
480 VA
resistive
100000 cycles DC-12
24 V
48 W
resistive
240 V
480 VA
resistive
100000 cycles DC-12
24 V
48 W
resistive
Switching frequency
0.1 Hz with maximum load
5 Hz without maximum load
5 Hz without maximum load
Mechanical durability
20000000 cycles for relay output
Minimum load
10 mA at 5 V DC for relay output
Memory capacity
1024 kB internal flash with 10000 instructions for backup of programs
Data storage equipment
32 GB micro SD card (optional)
Execution time for 1 KInstruction
0.3 ms for event and periodic task
Execution time per instruction
0.2 µs Boolean
Exct time for event task
60 µs response time
Regulation loop
Adjustable PID regulator up to 14 simultaneous loops
Control signal type
Quadrature (x1
x2
x4) at 60 kHz for fast input (HSC mode)
Pulse/direction at 60 kHz for fast input (HSC mode)
Single phase at 60 kHz for fast input (HSC mode)
CW/CCW at 60 kHz for fast input (HSC mode)
x2
x4) at 60 kHz for fast input (HSC mode)
Pulse/direction at 60 kHz for fast input (HSC mode)
Single phase at 60 kHz for fast input (HSC mode)
CW/CCW at 60 kHz for fast input (HSC mode)
Counting input number
2 fast input (HSC mode) at 60 kHz 32 bits
Integrated connection type
USB port with mini B USB 2.0 connector
Non isolated serial link serial 1 with terminal block connector and RS485 interface
Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface
Non isolated serial link serial 1 with terminal block connector and RS485 interface
Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface
Transmission rate
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
12 Mbit/s for USB
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
12 Mbit/s for USB
Communication port protocol
USB port: USB - SoMachine-Network
Non isolated serial link: Modbus master/slave - RTU/ASCII or
SoMachine-Network
Non isolated serial link: Modbus master/slave - RTU/ASCII or
SoMachine-Network
Local signalling
1 LED (green) for PWR
1 LED (green) for RUN
1 LED (red) for module error (ERR)
1 LED (green) for SD card access (SD)
1 LED (green) for SL1
1 LED per channel (green) for I/O state
1 LED (green) for RUN
1 LED (red) for module error (ERR)
1 LED (green) for SD card access (SD)
1 LED (green) for SL1
1 LED per channel (green) for I/O state
Electrical connection
removable screw terminal blockfor inputs
removable screw terminal blockfor outputs
removable screw terminal block
4 terminal(s) for connecting the serial link1
Mini B USB 2.0 connectorfor a programming terminal
removable screw terminal block
3 terminal(s) for connecting the
100-240 V AC power supply
removable screw terminal blockfor outputs
removable screw terminal block
4 terminal(s) for connecting the serial link1
Mini B USB 2.0 connectorfor a programming terminal
removable screw terminal block
3 terminal(s) for connecting the
100-240 V AC power supply
Maximum cable distance between devices
Shielded cable: <10 m for fast input
Shielded cable: <10 m for high speed input
Unshielded cable: <150 m for output
Unshielded cable: <50 m for regular input
Shielded cable: <10 m for high speed input
Unshielded cable: <150 m for output
Unshielded cable: <50 m for regular input
Insulation
Between input and internal logic at 560 V AC
Between fast input and internal logic at 560 V AC
Between input groups at 560 V AC
Non-insulated between inputs
Between output and internal logic at 1780 V AC
Between output groups at 1780 V AC
Between supply and internal logic at 1780 V AC
Between fast input and internal logic at 560 V AC
Between input groups at 560 V AC
Non-insulated between inputs
Between output and internal logic at 1780 V AC
Between output groups at 1780 V AC
Between supply and internal logic at 1780 V AC
Sensor power supply
24 V DC
Mounting support
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 plate or panel with fixing kit conforming to
IEC 60715
Top hat type TH35-7.5 plate or panel with fixing kit conforming to
IEC 60715
Height
90 mm
Depth
70 mm
Width
110 mm
Product weight
0.31 kg
Environment
| IP degree of protection |
IP20 with protective cover in place |
| Product certifications |
CE |
| Standards |
EN/IEC 61010-2-201 EN/IEC 61131-2 |
| Electromagnetic compatibility |
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV class A (power lines (DC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV class A (power lines (AC)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to EN/IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 |
| Shock resistance |
15 gn for 11 ms 30 gn for 6 ms |
| Immunity to microbreaks |
10 ms |
| Vibration resistance |
3.5 mm at 5…8.4 Hz on symmetrical rail 1 gn at 8.4…150 Hz on symmetrical rail 3.5 mm at 5…8.4 Hz on panel mounting 3 gn at 8.4…150 Hz on panel mounting |
| Relative humidity |
10…95 % without condensation (in operation) 10…95 % without condensation (in storage) |
| Ambient air temperature for operation |
0…55 °C (horizontal installation) |
| Ambient air temperature for storage |
-25…70 °C |
| pollution degree |
<= 2 |
| Operating altitude |
0...2000 m |
| Storage altitude |
0…3000 m |
IP degree of protection
IP20 with protective cover in place
Product certifications
CE
Standards
EN/IEC 61010-2-201
EN/IEC 61131-2
EN/IEC 61131-2
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3
Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 0.5 kV class A (power lines (DC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV class A (power lines (AC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to EN/IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3
Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011
Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011
Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 0.5 kV class A (power lines (DC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV class A (power lines (AC)) conforming to EN/IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to EN/IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Shock resistance
15 gn for 11 ms
30 gn for 6 ms
30 gn for 6 ms
Immunity to microbreaks
10 ms
Vibration resistance
3.5 mm at 5…8.4 Hz on symmetrical rail
1 gn at 8.4…150 Hz on symmetrical rail
3.5 mm at 5…8.4 Hz on panel mounting
3 gn at 8.4…150 Hz on panel mounting
1 gn at 8.4…150 Hz on symmetrical rail
3.5 mm at 5…8.4 Hz on panel mounting
3 gn at 8.4…150 Hz on panel mounting
Relative humidity
10…95 %
without condensation (in operation)
10…95 %
without condensation (in storage)
without condensation (in operation)
10…95 %
without condensation (in storage)
Ambient air temperature for operation
0…55 °C (horizontal installation)
Ambient air temperature for storage
-25…70 °C
pollution degree
<= 2
Operating altitude
0...2000 m
Storage altitude
0…3000 m
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
9.493 cm |
| Package 1 Width |
12.157 cm |
| Package 1 Length |
13.668 cm |
| Package 1 Weight |
450 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
18 |
| Package 2 Height |
30 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
8600 g |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
432 |
| Package 3 Height |
95 cm |
| Package 3 Width |
80 cm |
| Package 3 Length |
120 cm |
| Package 3 Weight |
215400 g |
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.493 cm
Package 1 Width
12.157 cm
Package 1 Length
13.668 cm
Package 1 Weight
450 g
Unit Type of Package 2
S03
Number of Units in Package 2
18
Package 2 Height
30 cm
Package 2 Width
30 cm
Package 2 Length
40 cm
Package 2 Weight
8600 g
Unit Type of Package 3
P12
Number of Units in Package 3
432
Package 3 Height
95 cm
Package 3 Width
80 cm
Package 3 Length
120 cm
Package 3 Weight
215400 g
Downloads
Schneider Electric_Modico...
PDF (604.6 KB) |
Added: 07 Jun 2025
