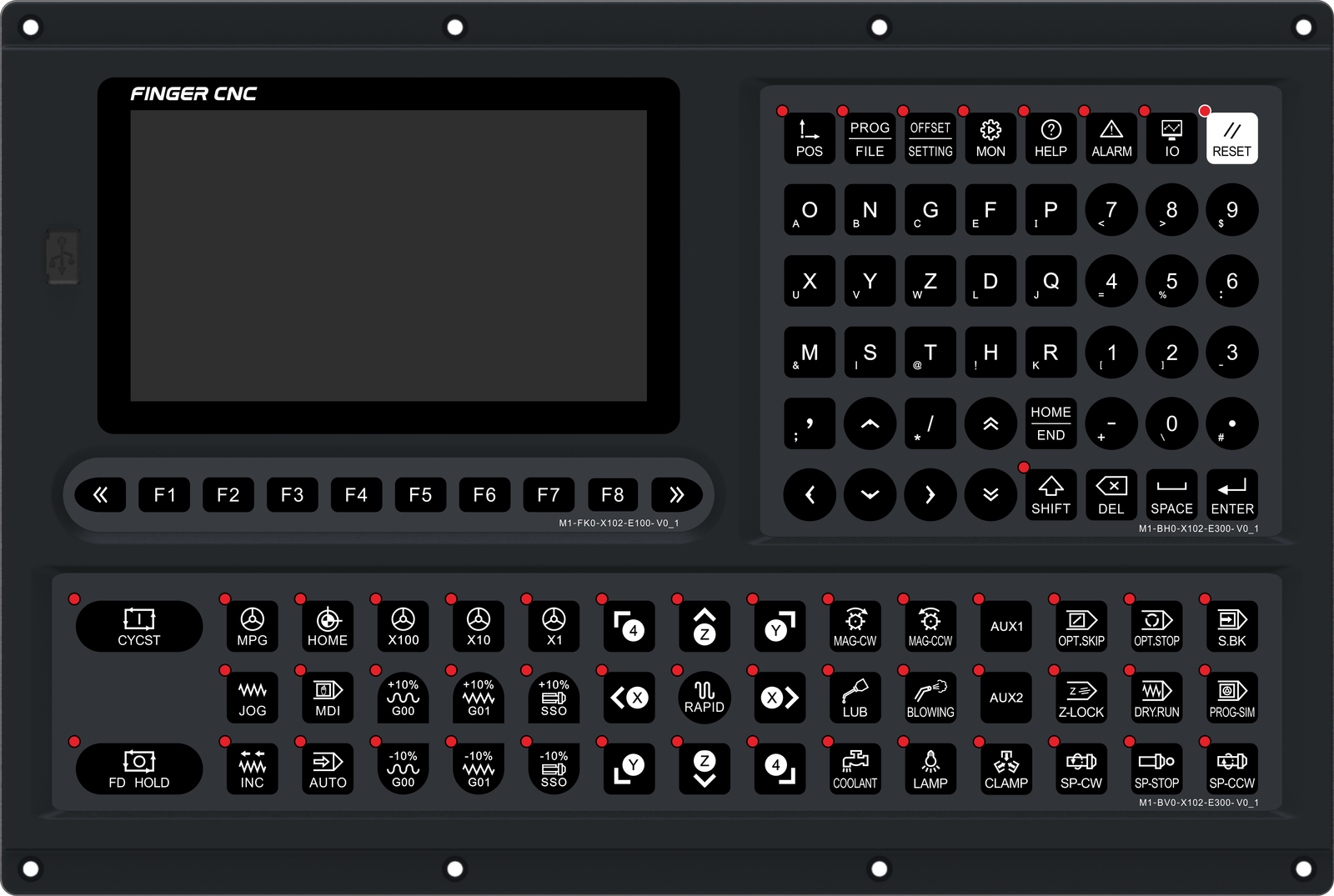

  • B Series 7-Inch CNC Milling System (Horizontal) image 1

B Series 7-Inch CNC Milling System (Horizontal)

400MA1-H

1. High-definition LCD display. 2. Supports 3 or 4-axis CNC milling control (XYZ or XYZ + 4th axis). 3. Supports conventional graphical conversational programming for easy operation. 4. Comprehensive machining modes: not only supports standard milling operations, but also hole and thread machining including drilling, reaming, tapping, countersinking, boring, and milling various hole sizes, making it suitable for diverse workpieces. 5. EtherCAT or MECHATROLINK-III bus control for enhanced real-time performance and easier maintenance. 6. Optional IoT support for real-time access to machining data, enabling more efficient management.
WhatsApp Call Now

Main Documents

Documents

Document FINGER CNC_Milling B Seri... PDF
See all documents

Description

1. High-definition LCD display. 2. Supports 3 or 4-axis CNC milling control (XYZ or XYZ + 4th axis). 3. Supports conventional graphical conversational programming for easy operation. 4. Comprehensive machining modes: not only supports standard milling operations, but also hole and thread machining including drilling, reaming, tapping, countersinking, boring, and milling various hole sizes, making it suitable for diverse workpieces. 5. EtherCAT or MECHATROLINK-III bus control for enhanced real-time performance and easier maintenance. 6. Optional IoT support for real-time access to machining data, enabling more efficient management.

Specifications

System Specifications
Installation Method Horizontal
Display Screen Size 7-inch
Maximum Number of Axes (Including Spindle) Standard 6 (maximum 6)
Maximum Number of Channels Standard 1 (maximum 1)
Maximum Number of Linked Axes per Channel 4 (XYZA)
Maximum Number of Spindles per Channel Standard 1 (maximum 1)
Application Scenarios (Axis Distribution) Economic milling machines
simple milling machines
turret mills
desktop milling machines
drilling and tapping machines: XYZ + spindle + tool magazine XYZ + 4th axis + spindle + tool magazine
DA/AD Optional Expansion
Operating System LinuxRT
Memory 1GB
Program Capacity 4GB
Lookahead Blocks 1000 blocks/second
Maximum Tool Compensation Groups 160 groups
Communication/Transfer USB / RS485 / LAN / WIFI
Bus Functions EtherCAT Bus
Standard I/O I16 / O16
Maximum Expandable I/O I32 / O32
(IoT) Industrial Internet of Things Optional
Absolute Value Function EtherCAT
