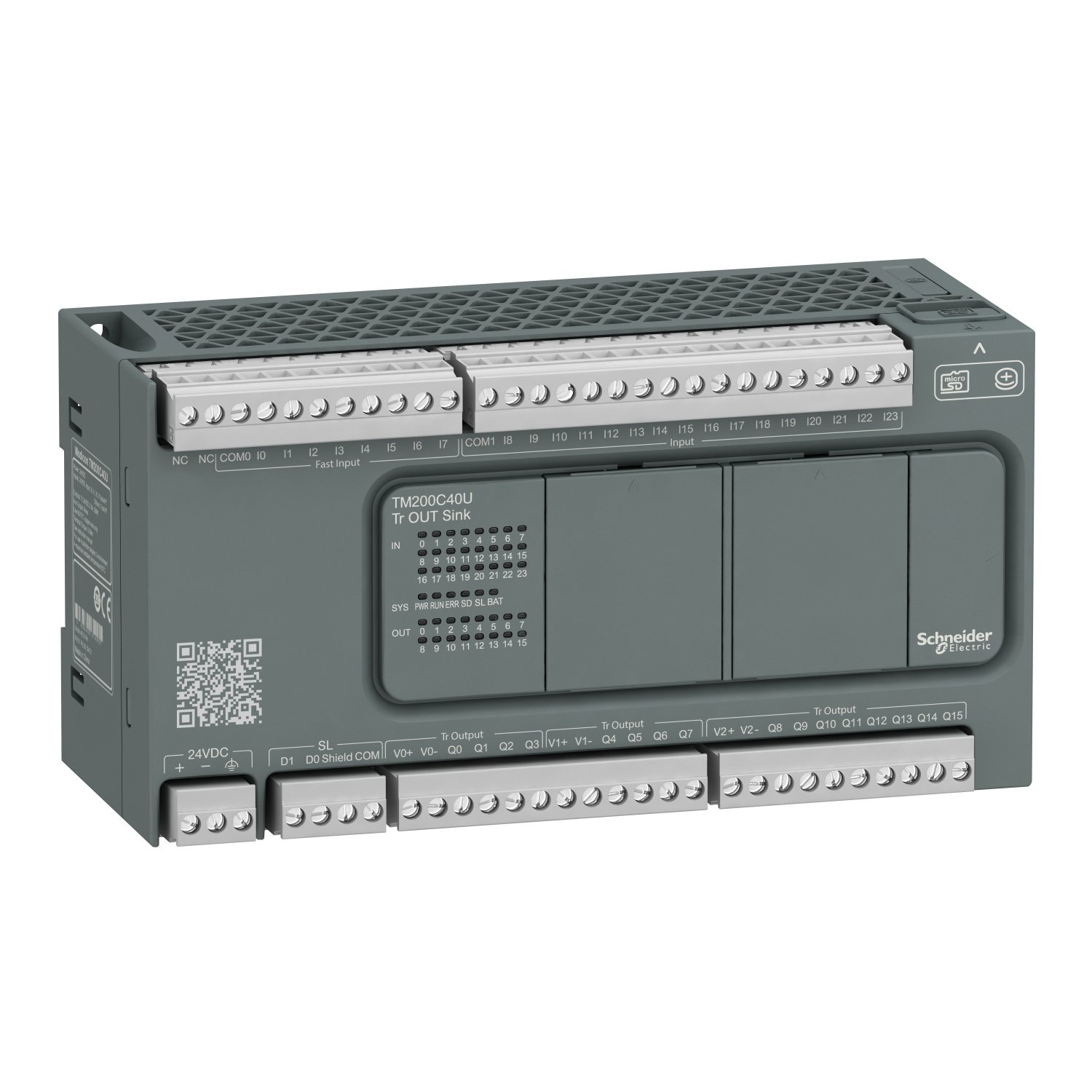

controller M200 40 IO transistor SINK
TM200C40U
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 16 regular inputs, 4 fast inputs, 4 high speed inputs and 16 sink transistor outputs, including 2 fast outputs. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, non isolated serial link 1 and RS485, non isolated serial link 2 and RS232/RS485, and isolated serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 175mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.468kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Main Documents
Description
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 16 regular inputs, 4 fast inputs, 4 high speed inputs and 16 sink transistor outputs, including 2 fast outputs. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, non isolated serial link 1 and RS485, non isolated serial link 2 and RS232/RS485, and isolated serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 175mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.468kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Specifications
Main
| Range of product |
Easy Modicon M200 |
| Product or component type |
Logic controller |
| [Us] rated supply voltage |
24 V DC |
| Discrete I/O number |
40 |
| Discrete input number |
I2...I5: 4 fast input I0 I1 I6 I7: 4 high speed input I8...I23: 16 regular input |
| Discrete output number |
Q0...Q1: 2 fast output (PLS/PWM/PTO mode) Q0...Q1: 2 fast output (PLS/PWM/PTO mode) |
| Discrete input voltage |
24 V |
| Discrete input voltage type |
DC |
| Discrete input current |
7 mA for input |
| Discrete input logic |
Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete output voltage |
24 V DC |
| Discrete output current |
0.5 A |
| Discrete output type |
Transistor |
| Discrete output logic |
Negative logic (sink) |
| Power consumption in W |
10 W at 24 V DC (with max I/O) |
Range of product
Easy Modicon M200
Product or component type
Logic controller
[Us] rated supply voltage
24 V DC
Discrete I/O number
40
Discrete input number
I2...I5: 4 fast input
I0
I1
I6
I7: 4 high speed input
I8...I23: 16 regular input
I0
I1
I6
I7: 4 high speed input
I8...I23: 16 regular input
Discrete output number
Q0...Q1: 2 fast output (PLS/PWM/PTO mode)
Q0...Q1: 2 fast output (PLS/PWM/PTO mode)
Q0...Q1: 2 fast output (PLS/PWM/PTO mode)
Discrete input voltage
24 V
Discrete input voltage type
DC
Discrete input current
7 mA for input
Discrete input logic
Sink or source (positive/negative) type 1 conforming to IEC 61131-2
Discrete output voltage
24 V DC
Discrete output current
0.5 A
Discrete output type
Transistor
Discrete output logic
Negative logic (sink)
Power consumption in W
10 W at 24 V DC (with max I/O)
Complementary
| Maximum number of I/O expansion module |
4 with 64 discrete output(s) for relay output 4 with 144 discrete output(s) for transistor output |
| Supply voltage limits |
20.4…28.8 V |
| Inrush current |
35 A |
| Voltage state 1 guaranteed |
>= 15 V for input |
| Voltage state 0 guaranteed |
<= 5 V for input |
| Input impedance |
3.3 kOhm for discrete input |
| Response time |
1 ms turn-on Q0...Q15 terminal(s) for output 1 ms turn-off Q0...Q15 terminal(s) for output 5 µs turn-off I0 I1 I6 I7 terminal(s) for high speed input 5 µs turn-on I0 I1 I6 I7 terminal(s) for high speed input 100 µs turn-off I2...I5 terminal(s) for fast input 35 µs turn-on I2...I5 terminal(s) for fast input 100 µs turn-off I8...I13 terminal(s) for regular input 35 µs turn-on I8...I13 terminal(s) for regular input 125 µs turn-off I14...I23 terminal(s) for regular input 55 µs turn-on I14...I23 terminal(s) for regular input |
| Configurable filtering time |
0 ms for input 3 ms for input 12 ms for input |
| Maximum current per output common |
12 ms for input 2 A at COM 1 4 A at COM 2 |
| Output frequency |
100 kHz for fast output (PWM/PLS mode) at Q0...Q1 |
| Maximum leakage current |
0.1 mA for transistor output |
| Maximum voltage drop |
<1 V |
| Maximum tungsten load |
<12 W for output and fast output |
| Protection type |
Overload and short-circuit protection at 3.8 A |
| Reset time |
1 s automatic reset |
| Memory capacity |
512 byte internal flash for backup of programs |
| Data storage equipment |
32 GB micro SD card (optional) |
| Battery type |
BR2032 Li-CFx (Lithium-Carbon Monofluoride) battery life: 5 year(s) |
| Backup time |
3 years at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction |
0.3 ms for event and periodic task |
| Execution time per instruction |
0.2 µs Boolean |
| Exct time for event task |
60 µs response time |
| Clock drift |
<= 90 s/month at 25 °C |
| Regulation loop |
Adjustable PID regulator up to 14 simultaneous loops |
| Positioning functions |
PWM/PLS 2 channel(s) at 100 kHz |
| Control signal type |
Quadrature (x1 x2 x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode) |
| Counting input number |
4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated connection type |
USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Isolated serial link serial 2 with terminal block connector and RS485 interface |
| Transmission rate |
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB |
| Communication port protocol |
USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local signalling |
1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state |
| Electrical connection |
Mini B USB 2.0 connectorfor a programming terminal removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block 3 terminal(s) for connecting the 24 V DC power supply removable screw terminal block 4 terminal(s) for connecting the serial link1 |
| Maximum cable distance between devices |
Unshielded cable: <50 m for input Shielded cable: <10 m for fast input Shielded cable: <10 m for high speed input Unshielded cable: <150 m for output |
| Insulation |
Non-insulated between inputs Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC Between output and internal logic at 500 V AC Between output groups at 500 V AC Between supply and internal logic at 500 V DC |
| Marking |
CE |
| Mounting support |
Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height |
90 mm |
| Depth |
70 mm |
| Width |
175 mm |
| Product weight |
0.468 kg |
Maximum number of I/O expansion module
4 with 64 discrete output(s) for relay output
4 with 144 discrete output(s) for transistor output
4 with 144 discrete output(s) for transistor output
Supply voltage limits
20.4…28.8 V
Inrush current
35 A
Voltage state 1 guaranteed
>= 15 V for input
Voltage state 0 guaranteed
<= 5 V for input
Input impedance
3.3 kOhm for discrete input
Response time
1 ms turn-on
Q0...Q15 terminal(s) for output
1 ms turn-off
Q0...Q15 terminal(s) for output
5 µs turn-off
I0
I1
I6
I7 terminal(s) for high speed input
5 µs turn-on
I0
I1
I6
I7 terminal(s) for high speed input
100 µs turn-off
I2...I5 terminal(s) for fast input
35 µs turn-on
I2...I5 terminal(s) for fast input
100 µs turn-off
I8...I13 terminal(s) for regular input
35 µs turn-on
I8...I13 terminal(s) for regular input
125 µs turn-off
I14...I23 terminal(s) for regular input
55 µs turn-on
I14...I23 terminal(s) for regular input
Q0...Q15 terminal(s) for output
1 ms turn-off
Q0...Q15 terminal(s) for output
5 µs turn-off
I0
I1
I6
I7 terminal(s) for high speed input
5 µs turn-on
I0
I1
I6
I7 terminal(s) for high speed input
100 µs turn-off
I2...I5 terminal(s) for fast input
35 µs turn-on
I2...I5 terminal(s) for fast input
100 µs turn-off
I8...I13 terminal(s) for regular input
35 µs turn-on
I8...I13 terminal(s) for regular input
125 µs turn-off
I14...I23 terminal(s) for regular input
55 µs turn-on
I14...I23 terminal(s) for regular input
Configurable filtering time
0 ms for input
3 ms for input
12 ms for input
3 ms for input
12 ms for input
Maximum current per output common
12 ms for input
2 A at COM 1
4 A at COM 2
2 A at COM 1
4 A at COM 2
Output frequency
100 kHz for fast output (PWM/PLS mode) at Q0...Q1
Maximum leakage current
0.1 mA for transistor output
Maximum voltage drop
<1 V
Maximum tungsten load
<12 W for output and fast output
Protection type
Overload and short-circuit protection at 3.8 A
Reset time
1 s automatic reset
Memory capacity
512 byte internal flash for backup of programs
Data storage equipment
32 GB micro SD card (optional)
Battery type
BR2032 Li-CFx (Lithium-Carbon Monofluoride)
battery life: 5 year(s)
battery life: 5 year(s)
Backup time
3 years at 25 °C (by interruption of power supply)
Execution time for 1 KInstruction
0.3 ms for event and periodic task
Execution time per instruction
0.2 µs Boolean
Exct time for event task
60 µs response time
Clock drift
<= 90 s/month at 25 °C
Regulation loop
Adjustable PID regulator up to 14 simultaneous loops
Positioning functions
PWM/PLS 2 channel(s) at 100 kHz
Control signal type
Quadrature (x1
x2
x4) at 100 kHz for fast input (HSC mode)
Pulse/direction at 100 kHz for fast input (HSC mode)
Single phase at 100 kHz for fast input (HSC mode)
CW/CCW at 100 kHz for fast input (HSC mode)
x2
x4) at 100 kHz for fast input (HSC mode)
Pulse/direction at 100 kHz for fast input (HSC mode)
Single phase at 100 kHz for fast input (HSC mode)
CW/CCW at 100 kHz for fast input (HSC mode)
Counting input number
4 fast input (HSC mode) at 100 kHz 32 bits
Integrated connection type
USB port with mini B USB 2.0 connector
Non isolated serial link serial 1 with terminal block connector and RS485 interface
Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface
Isolated serial link serial 2 with terminal block connector and RS485 interface
Non isolated serial link serial 1 with terminal block connector and RS485 interface
Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface
Isolated serial link serial 2 with terminal block connector and RS485 interface
Transmission rate
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
12 Mbit/s for USB
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
12 Mbit/s for USB
Communication port protocol
USB port: USB - SoMachine-Network
Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Local signalling
1 LED (green) for PWR
1 LED (green) for RUN
1 LED (red) for module error (ERR)
1 LED (green) for SD card access (SD)
1 LED (red) for BAT
1 LED (green) for SL1
1 LED per channel (green) for I/O state
1 LED (green) for RUN
1 LED (red) for module error (ERR)
1 LED (green) for SD card access (SD)
1 LED (red) for BAT
1 LED (green) for SL1
1 LED per channel (green) for I/O state
Electrical connection
Mini B USB 2.0 connectorfor a programming terminal
removable screw terminal blockfor inputs
removable screw terminal blockfor outputs
removable screw terminal block
3 terminal(s) for connecting the 24 V DC power supply
removable screw terminal block
4 terminal(s) for connecting the serial link1
removable screw terminal blockfor inputs
removable screw terminal blockfor outputs
removable screw terminal block
3 terminal(s) for connecting the 24 V DC power supply
removable screw terminal block
4 terminal(s) for connecting the serial link1
Maximum cable distance between devices
Unshielded cable: <50 m for input
Shielded cable: <10 m for fast input
Shielded cable: <10 m for high speed input
Unshielded cable: <150 m for output
Shielded cable: <10 m for fast input
Shielded cable: <10 m for high speed input
Unshielded cable: <150 m for output
Insulation
Non-insulated between inputs
Between input and internal logic at 500 V AC
Between fast input and internal logic at 500 V AC
Between input groups at 500 V AC
Between output and internal logic at 500 V AC
Between output groups at 500 V AC
Between supply and internal logic at 500 V DC
Between input and internal logic at 500 V AC
Between fast input and internal logic at 500 V AC
Between input groups at 500 V AC
Between output and internal logic at 500 V AC
Between output groups at 500 V AC
Between supply and internal logic at 500 V DC
Marking
CE
Mounting support
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Height
90 mm
Depth
70 mm
Width
175 mm
Product weight
0.468 kg
Environment
| IP degree of protection |
IP20 with protective cover in place |
| Product certifications |
RCM IACS E10 CSA cULus |
| Standards |
IEC 61131-2 IEC 61010-2-201 |
| Electromagnetic compatibility |
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 |
| Shock resistance |
15 gn for 11 ms 30 gn for 6 ms |
| Immunity to microbreaks |
2 ms |
| Vibration resistance |
3.5 mm at 5…8.4 Hz on symmetrical rail 1 gn at 8.4…150 Hz on symmetrical rail 3.5 mm at 5…8.7 Hz on panel mounting 2 gn at 8.7…150 Hz on panel mounting |
| Relative humidity |
10…95 % without condensation (in operation) 10…95 % without condensation (in storage) |
| Ambient air temperature for operation |
0…55 °C (horizontal installation) |
| Ambient air temperature for storage |
-25…70 °C |
| pollution degree |
<= 2 |
| Operating altitude |
0...2000 m |
| Storage altitude |
0…3000 m |
IP degree of protection
IP20 with protective cover in place
Product certifications
RCM
IACS E10
CSA
cULus
IACS E10
CSA
cULus
Standards
IEC 61131-2
IEC 61010-2-201
IEC 61010-2-201
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3
Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8
Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6
Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011
Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011
Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3
Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8
Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6
Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011
Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011
Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011
Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011
Shock resistance
15 gn for 11 ms
30 gn for 6 ms
30 gn for 6 ms
Immunity to microbreaks
2 ms
Vibration resistance
3.5 mm at 5…8.4 Hz on symmetrical rail
1 gn at 8.4…150 Hz on symmetrical rail
3.5 mm at 5…8.7 Hz on panel mounting
2 gn at 8.7…150 Hz on panel mounting
1 gn at 8.4…150 Hz on symmetrical rail
3.5 mm at 5…8.7 Hz on panel mounting
2 gn at 8.7…150 Hz on panel mounting
Relative humidity
10…95 %
without condensation (in operation)
10…95 %
without condensation (in storage)
without condensation (in operation)
10…95 %
without condensation (in storage)
Ambient air temperature for operation
0…55 °C (horizontal installation)
Ambient air temperature for storage
-25…70 °C
pollution degree
<= 2
Operating altitude
0...2000 m
Storage altitude
0…3000 m
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
9 cm |
| Package 1 Width |
18.3 cm |
| Package 1 Length |
13.6 cm |
| Package 1 Weight |
772.5 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
30 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
9770 g |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
288 |
| Package 3 Height |
95 cm |
| Package 3 Width |
80 cm |
| Package 3 Length |
120 cm |
| Package 3 Weight |
243480 g |
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9 cm
Package 1 Width
18.3 cm
Package 1 Length
13.6 cm
Package 1 Weight
772.5 g
Unit Type of Package 2
S03
Number of Units in Package 2
12
Package 2 Height
30 cm
Package 2 Width
30 cm
Package 2 Length
40 cm
Package 2 Weight
9770 g
Unit Type of Package 3
P12
Number of Units in Package 3
288
Package 3 Height
95 cm
Package 3 Width
80 cm
Package 3 Length
120 cm
Package 3 Weight
243480 g
Downloads
Schneider Electric_Modico...
PDF (827.6 KB) |
Added: 08 Jun 2025
